Unity

Wideband absorber panel

Frame 1
Unity

Class A rated certified broadband absorption from 100 Hz to 10 kHz.

Whether you're treating a critical listening room, a live recording space, or a post-production suite, Unity is the panel that ends the compromise between low-frequency control and broadband transparency.

Control your room

Designed and tested to deliver full-spectrum acoustic control, the Unity Wide Band Absorber achieves the highest possible absorption ratings across every standard metric — an NRC of 1.0, an SAA of 1.0, and a weighted absorption coefficient (αw) of 1.0 with a Class A sound absorption classification to BS EN ISO 11654.

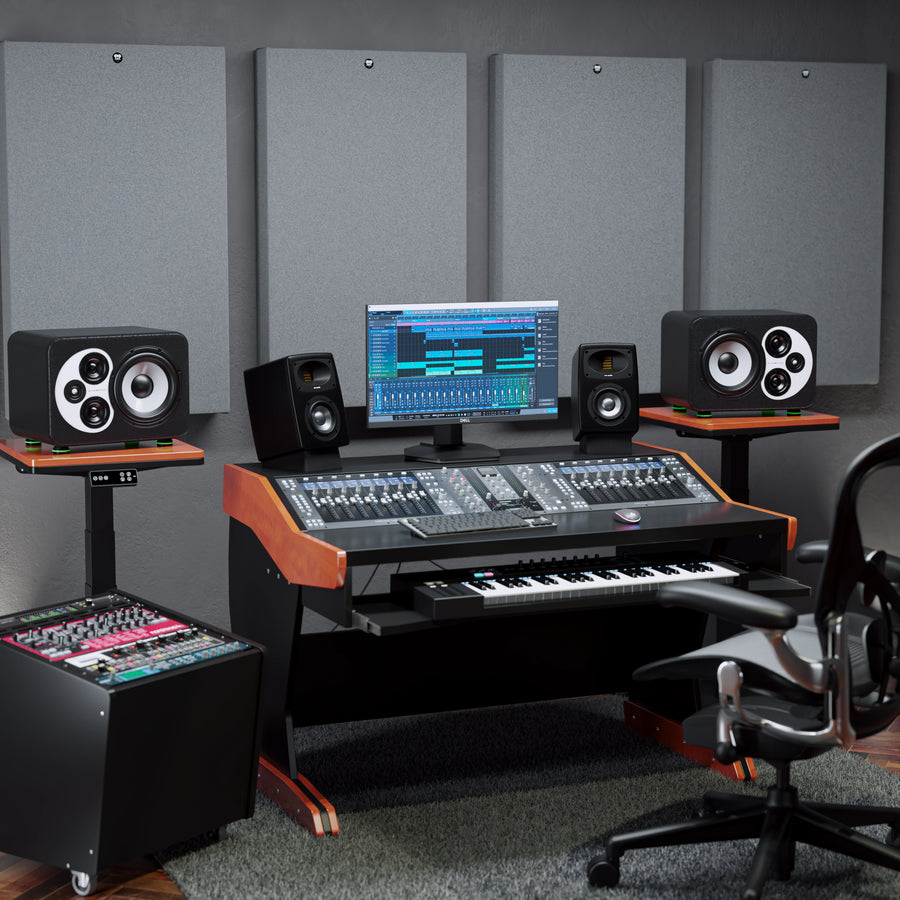

Absorption Where It Counts

Most acoustic panels claim broadband performance but fall off sharply below 250 Hz — exactly where room modes and low-mid buildup cause the most damage to critical monitoring. Unity is different.


Independently tested in a 202 m³ reverberation chamber to BS EN ISO 354, Unity delivers absorption coefficients exceeding 1.0 across the entire range from 200 Hz to 5 kHz, with meaningful absorption extending down to 100 Hz (αs = 0.36) and strong low-frequency performance at 125 Hz (αs = 0.65). With a 50 mm air gap, the panel reaches a peak αs of 1.46 at 400 Hz — right in the critical low-mid region where untreated rooms are at their worst.

BS EN ISO 354Peak αs of 1.46 at 400 Hz
Absorption Where It Counts

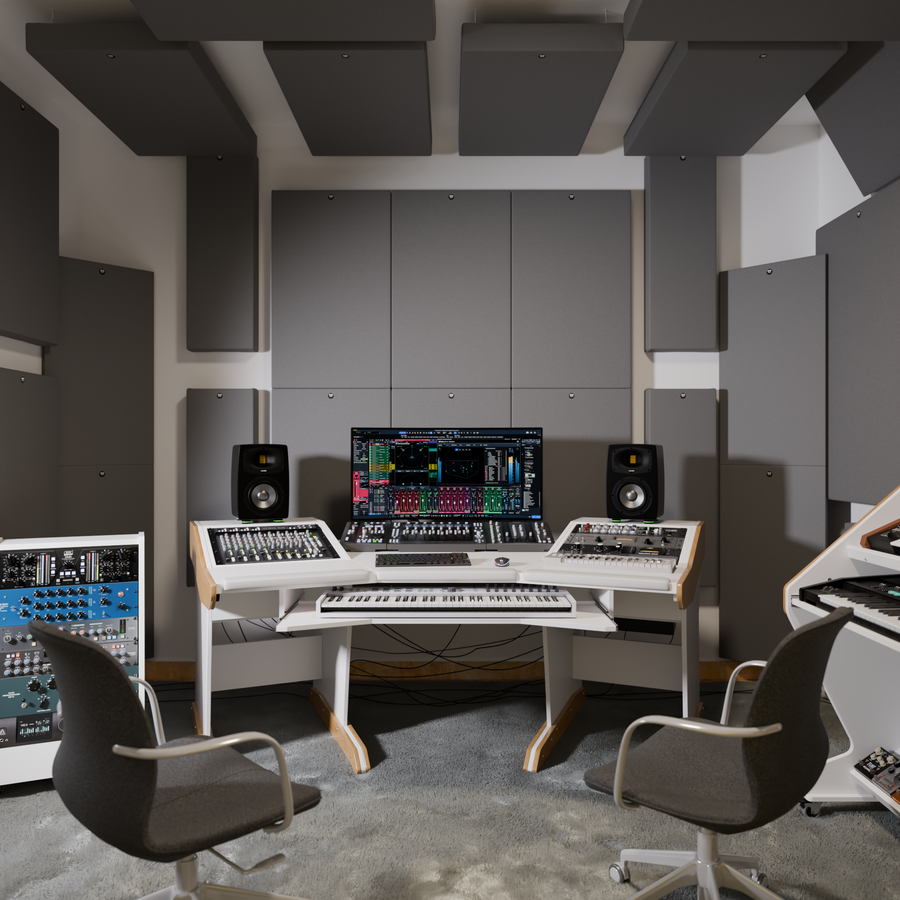

Built for Real Rooms

At 104 × 64 cm, Unity is sized for flexible placement — first reflection points, rear walls, ceiling clouds, or full-wall arrays. The 95 mm depth keeps the profile manageable, and the recommended 50 mm air gap behind the panel extends low-frequency reach without adding significant depth to the installation.


Panels can be mounted individually or in arrays. The tested configuration of 15 panels in a 5 × 3 grid confirms performance at scale — no edge-effect asterisks, no single-panel lab flattery.

104 x 64 x 10 cm
Built for Real Rooms

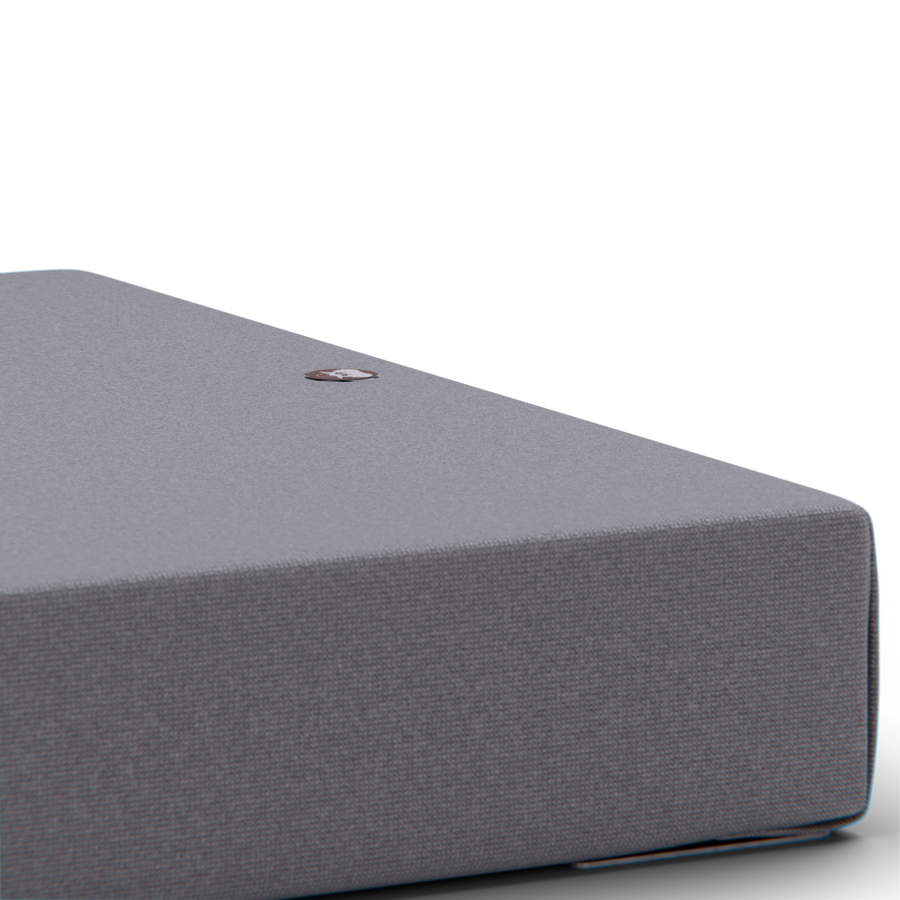

Uncompromising Performance

Unity is designed and hand-built in the EU by Buso Audio. Each unit is constructed in-house using premium acoustic materials selected for consistent, repeatable performance across production runs. The result is a panel that looks and feels as precise as it measures, built to the same standard whether you're ordering two for a vocal booth or thirty for a mix room.

Uncompromising Performance

Performance

Sound absorption coefficient test to BS EN ISO 354

Values by category
Frequency (Hz) Unity Acoustic Panel Product B
100 0.363198739997139
125 0.6525727403192
160 0.859962402200164
200 1.28754018621185
250 1.25145788373842
315 1.37858211947086
400 1.46107678138356
500 1.40997588234529
630 1.37612673892295
800 1.32863111990229
1000 1.24579744219206
1250 1.1788759926064
1600 1.1734426949317
2000 1.18559840895611
2500 1.17595713906363
3150 1.13815716998433
4000 1.03004128619011

Chart could not be loaded.

Tested and certified at London South Bank University.

Dimensions (cm) 64 x 104 x 10
Panel area 0.67 sqm
Weight 5 kg
Recommended gap between panels 50 mm
